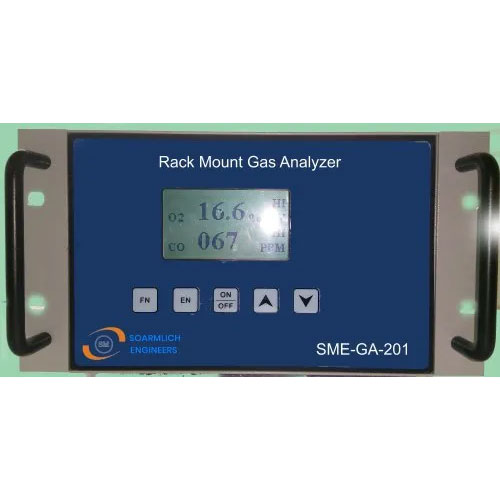

SME-GA-201 Rack Mount Gas Analyzer

Special Features

• Portable, compact and rugged.

• Complete Automatic Operation

• Graphics displays messages and values through the operation of the analyzer.

• Self check facility and a special software ensures accurate analysis of data.

• Standard Fuels with their parameters are preprogrammed. Others on request.

• Battery operating period of 6 hours.

• Inbuilt Buzzer announces various stages of operation.

• A mere Six key to operate the complete instrument.

• Visual alarms for Low Bat, No Flow and Sensor Fault.

• Automatic sampling & Analysis for specified periods at preset intervals - TUV Certified Instrument.

• Compact,Portable construction and simplicity of person makes SoarMlich Portable Gas Analyser a valuable aid for institute use in constantly changing measurement sites.

• Its versatile modular design permits configuration and upgradation to suit specific needs. You determine the number of Sensors for your instrument from (1 to 8) or should your analyzer have a built-in printer or RS 232 Output or a smoke test probe so you pay only for what you need.

• Self check of components and functions by special soware ensures perfect functioning of the unit, thereby accurate analysis data. Any unacceptable deviation from the standard stored values is displayed as an indication “ FAULT”.

• Instant Printout (with Time and Date) confirms the displayed readings that have been measured and calculated at the point of test. The instrument may also be instructed to sample and analyze for specified periods at preset intervals completely unattended.

• Software Package to store and analyze the data in various manners with PC XT, AT, 386, 486.

The highly upgradable SM-PGA-203 model can be AC Powered and/or Battery operated. It may include a chargeable battery, battery charger, Sampling Probe with condensate trap and an inline Micro Filter and an inbuilt Sampling Pump. It can be built to include upto 8 Nos. of Gas Sensors and Temperature Sensor, Dra/ Pressure besides the calculated parameters and have opons of :

• Data Logger

• Integral Printer

• RS 232 Output

• Date & Time

• Facility for Automatic analysis for specified period at preset intervals

Sample Treatment

• A condensate & Dust Trap & a low porosity in line filter to condition the sample. Time Tested, Sturdy, High Suction inbuilt Pump.

• A supervisory Electronic Circuit to continuously monitor the pump against failures.

• Proven Sensor Technology : Special purpose long life Sensors with cross interference filters to achieve high accuracy. Oxygen Sensor guaranteed for 4 years and other Electrochemical Sensor for 2 years.

• Volumetric (PPM), Quantitative (EMG/M³) analysis of desired parameters with printouts confirming displayed readings.

• Calculated Values for NOX, Fuel Efficiency, Lambda, CO2 & Diff. Temp.

• Smoke Measurement - Analyzer samples a pre-calibrated volume of Flue Gas across a filter which can then be compared with the Bachrach Scale to determine the smoke density number.

• Customized Versions - Heated & other special probes and accessories available to measure and match customers special requirements.
