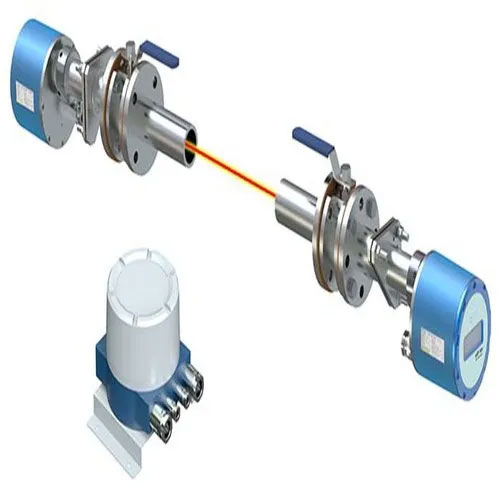

Online Continue Emission Monitoring System

SME-100 is a flameproof in-situ type analyser capable of analysing O2, Nox, NH3, So2, CH4, H2O, HCl, HF and other gases in various and complex conditions. The LGT-100 laser gas analyser can be directly installed across stack, with the advantages of uncomplicated sampling, no pre-treatment system, simple construction and no moving parts. The analyser’s OLED screen benefits from low power consumption, a wide viewing angle, and excellent low temperature resistance – it can display properly even at -40 Moreover, it can quickly respond to magnetic pen operation.

Technical Characteristics

High selectivity

TDLAS is high resolution spectrum technology, due to the "fingerprint" characteristics of the spectrum, it is

not affected

by the interference of other gases. This feature compared with other methods molecularhas obvious

advantages

High versatility

TDLAS is an effective general technology to all activist withinfrared absorption. Only need to change laser

and standard gas, the same instruments can be convenient to measure the other components. Based on

this characteristic, it can be easily changed to multi-component measurement instrument.

High sensitivity

TDLAS has the advantages of rapid response speed and high sensitivity. In the case of not losing

sensitivity, its time resolution can be found in ms level.

Features:

Fully integrated system up to 7 gases in a single compact analyzer.

Wide measurement range from 0 100 PPM up to 0 10,000 PPM.

Widely accepted, cerfied pe ormance complies with the latest monitoring standards.

Simple installaton &i mai tanance requires no specialist skills or training, all maintenance carried out onsite.

Highest measurement performance ultra low dri Measuremen t t echnology.

Measured Total NOx (NO+NO2) separate sensors for true NOx monitoring.

Record and store vital emission data internal data logging funcon.

Combuson efficiency measurement opon or a maintenance carried out onsite condion

Application:

Gas turbines

Power plants

Boiler systems coal, oil and gas fired

Incinerators domesc, biological waste

Wood, sawdust, pellet and bark burners

Thermal oxidizers

Pulp and paper

Cement & lime manufacture

Gas pipeline compressors

Biofuel power generaon

Petrochemical and refineries
